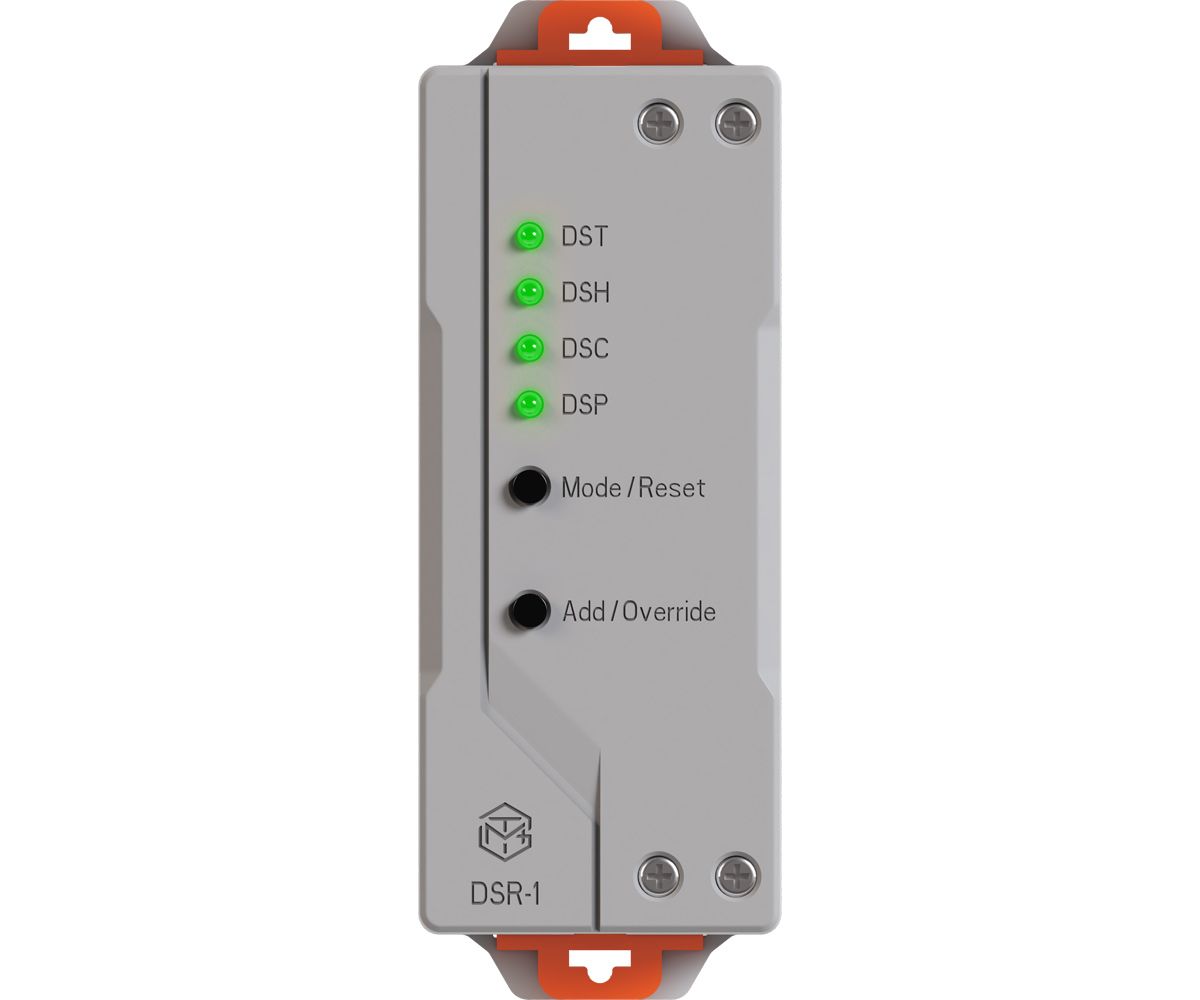

TrolMaster Relay Device Station 25 amp DSR-1

(DSR-1) 25Amps Relay Device Station

The TrolMaster DSR-1 Relay Device Station is a high-current output module compatible with Hydro-X, Aqua-X, Carbon-X, and Green-X control systems. The DSR-1 can be configured as a temperature (DST), humidity (DSH), CO2 (DSC), or timer (DSP) device module. It is designed with overload protection, a local override function, and a local alarm for relay contact adhesion. The DSR-1 supports up to 25 amps, ensuring reliable operation of connected equipment.

Features & Benefits

• Easy Operation


• Seamless Connection


• Multiple purposes assignment


• Plug & Play

Package Contents

• 1x 25Amps Relay Device Station


• 1 x 0.5ft RJ12 Cable


• 1 x 4ft RJ12 Cable

Specifications

• Input Voltage: 100-277V~, 50/60Hz


• Output Current: 25A


• Output Voltage: 100-277V~, 50/60Hz


• Working Environment: 32-104°F (0-40°C), Humidity ≤90%
