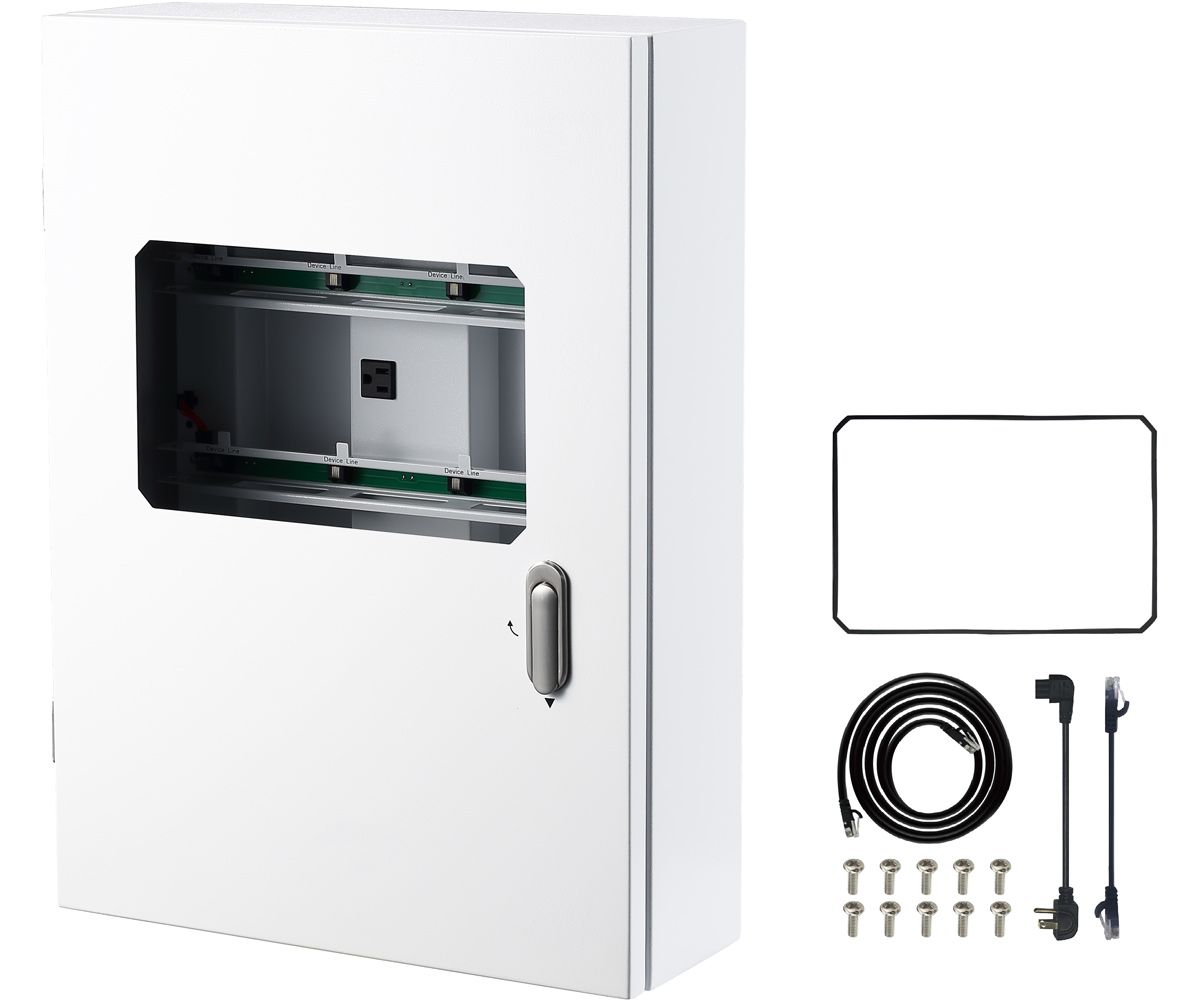

TrolMaster Controller Cabinet SCC-1 Standard for Hydro-X Pro 25 inch

item 641761

🌱 TrolMaster (SCC-1) 25” Standard Controller Cabinet for Hydro-X Pro / Aqua-X Pro

The SCC-1 25"Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.

The enclosures are designed to allow for your TrolMaster controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies and modules, and organize your RJ12 cables with ease.

Features & Benefits:

• Guaranteed Industrial Rated & Waterproof
• ALL-IN-ONE Controller & Device Module Housing
• Design Your Own Cabinet by Using Bi-directional RJ12 Cables
• Detachable Design
• Superior Safety System

Package Content:

• Controller Cabinet x1
• Installation Manual x1
• Long RJ-12 Cables x4
• Short RJ-12 Cables x16
• Power Cables (for OA6-24/OA6-110) x4
• OA6-24/OA6-110 Screw Set x 10

Cabinet Capacity:

• Splitter Board #1: 10 ports (top)
• Splitter Board #2: 6 ports (top)
• Splitter Board #3: 17 ports (top)
• Splitter Board #4: 2 x 4 ports (middle splitter bars)
• Splitter Board #5: 6 ports (bottom)
• Power Outlet: 4 + 1 + 6

Specification:

• Dimensions:25" (L) x 18" (W) x 6.26" (H)
• Enclosure Rating:IP56 (equivalent to NEMA 4X rating)
• Temperature Resistance:32°-104°F
• Input Voltage:120V
• Maximum Amperage:15A
