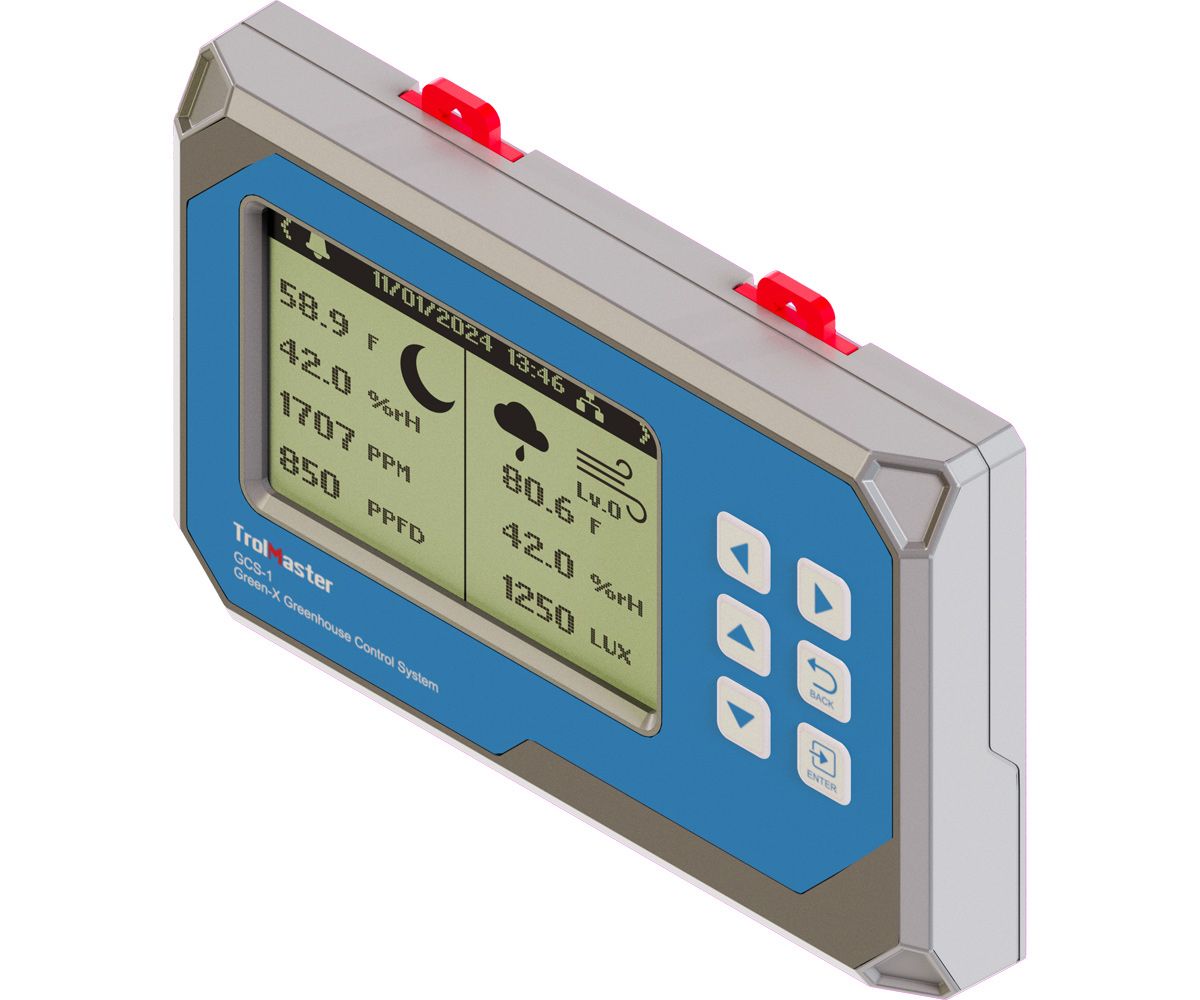

TrolMaster Green-X Greenhouse Control System GCS-1

item 641981

🌱 (GCS-1) Green-X Greenhouse Control System

The GCS-1 is an advanced, modular control system crafted to oversee irrigation, climate regulation, CO2 monitoring, lighting, and sophisticated sensor integration in greenhouses. The GCS-1 controller offers an all-in-one solution for tracking and managing various elements of greenhouse activities. It connects with multiple devices and sensors to guarantee precise environmental control, fostering the best conditions for plant growth. The GCS-1 includes a cutting-edge 4-in-1 sensor suite (MBS-GH) for accurate real-time tracking of temperature, humidity, and light intensity. For outside conditions, the controller can assess outdoor temperature and wind speed through the Weather Station Sensor (MBS-WS) while managing curtains and glass with the Single/Three Phase Curtain Motor Controller (AMC-1) & 24V DC Greenhouse Roll Up Motor Controller (DMC-1), thereby improving environmental monitoring and control by factoring in external temperature and weather conditions.

Features & Benefits

• All-in-one Greenhouse Control System
• (Grow Lights / Climate / Irrigation / Curtain Motor / Ventilation)
• Modular Design & Fully Customizable
• Entry cost-friendly & incredible expansion potential
• Control up to 96 scheduled Irrigation outputs (24V or 110V)
• Climate/Irrigation/Crops Historical Data Logging
• Compatible with the free TrolMaster App

Package Content

• 1x Greenhouse Controller
• 1x Temp/Humid/CO2/Day&Night 4-in-1 Sensor (MBS-GH)
• 1x RJ12 Cable Set for Light Connection
• 1x 12V Power Adapter
• 1x RJ12 T-Splitter

Specifications

• Sensor Capacity:
• MBS-GH (Temp/Humid/Light) max 1pc per set
• MBS-WS (Weather Station) max 1pc per set
• MBS-PAR (PPFD) max 1pc per set
• MBS-SD (Smoke Detector) max 1pc per set
• AMP-3 (pH / EC / Temp) max 1pc per set
• DFM-1/2/3 (Digital Flow Meter) max 1pc per set
• WCS-1/2/3 (Water Content / EC / Temp) max 8pcs per set
• WD-1 (Water Detector) max 2pcs per set

Device Capacity:

• Temperature Device Stations max 4pcs per set
• Humidity Device Stations max 4pcs per set
• CO2 Device Stations: max 2pcs per set
• Program(Timer) Device Stations: max 2pcs per set

• Irrigation Capacity (up to 96 outputs): Control Board & Device Station max 8pcs per set
• 24VDC Control Board (OA6-24): 6 outputs per device
• 24VDC Control Board (OAT-24): 12 outputs per device
• 110VAC Control Board (OA6-110): 6 outputs per device
• 100-240VAC Program Device Station(DSP-1/2): 1 output per device
• Dry Contact Station(DSD-1/2): 1 output per device

Motor Controller Capacity:

• AC & DC Motor Controller max 4pcs per set

EC Fan Control Capacity:

• EC Fan Control Adaptor(EFC-1) max 4pcs per set

Grow Light Control Capacity:

• 2 Lighting Channel l(Line 1 & 2) max 256 fixtures per channel (numbers depending on the brand or grow light)

• LCD Resolution: 256x160

Power:

• Input Voltage: 100-240VAC, 50/60Hz
• Output Current: 3A

Working Environment:

• Temperature Range: 32~122℉ (0~50℃)
• Operating Humidity: 5~95% RH
