TrolMaster RJ12 Splitter Hub SPH-1

item 615141

🌱 TrolMaster (SPH-1) RJ12 Splitter Hub

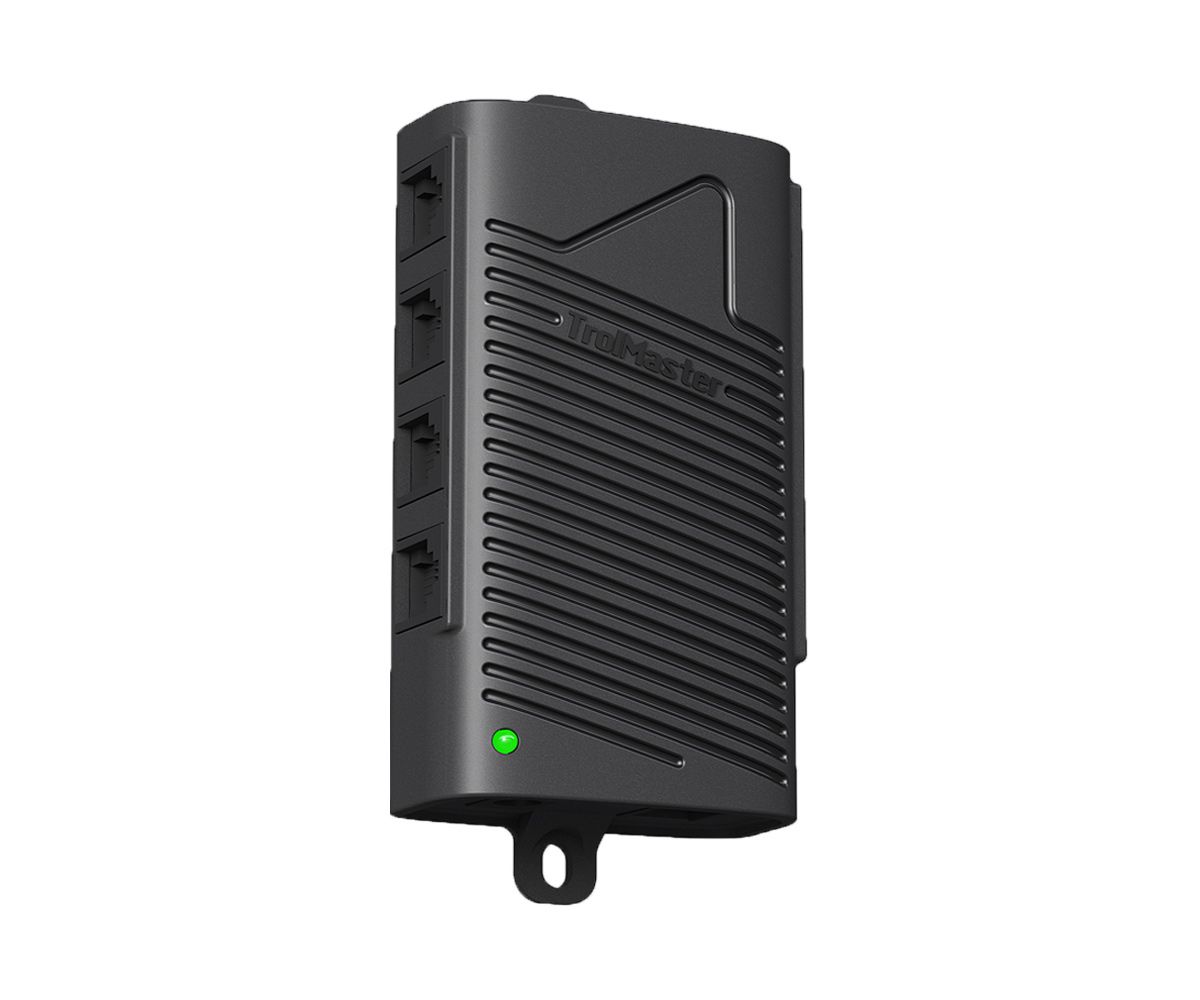

The SPH-1 Splitter Hub from TrolMaster makes the installation of our controllers as easy as plugging in a phone cable. The SPH-1 hub uses a single RJ12 cable input jack, and provides (8) individual RJ12 output jacks that can be connected to various TrolMaster sensors, adapters and device modules. Using the SPH-1 allows for a "clean" installation and eliminates the need for daisy-chain Y-splitters to be used to interconnect multiple modules or sensors.

The SPH-1 is also a powered hub, meaning that it will boost the signals passing through the SPH-1 allowing more modules, sensors and light adapters to be connected to the TrolMaster controllers. By using the SPH-1, an almost unlimited number of LED / HID lights can be controlled using a single TrolMaster controller. The SPH-1 comes complete with the SPH-1 hub, a 16 foot RJ12 cable and the 12vdc power supply.

The SPH-1 can be located in a central location with a single RJ12 cable connecting it to the main controller. From the SPH-1 hub, the individual RJ12 jacks can be connected to each of the sensors, device modules, or lighting adapters.

NOTE: If you are using the SPH-1 to interconnect your lighting systems together back to a single LMA adapter (except for LMA-T and ThinkGrow light system), DO NOT connect the 12 volt dc power supply to the SPH-1.

Features & Benefits:

• LED indicator
• Plug & Play

Package Content:

• 1x RJ12 Splitter Hub
• 1x 12V Power Adapter
• 1x 4 ft RJ12 Cable

Specification:

• Input Voltage :12VDC
• Maximum Current :1A
• Working Temperature :32-122°F
• Working Humidity :≤90%
• Packaging Dimensions :160mm(L) x 85mm(W) x 90mm(H)
