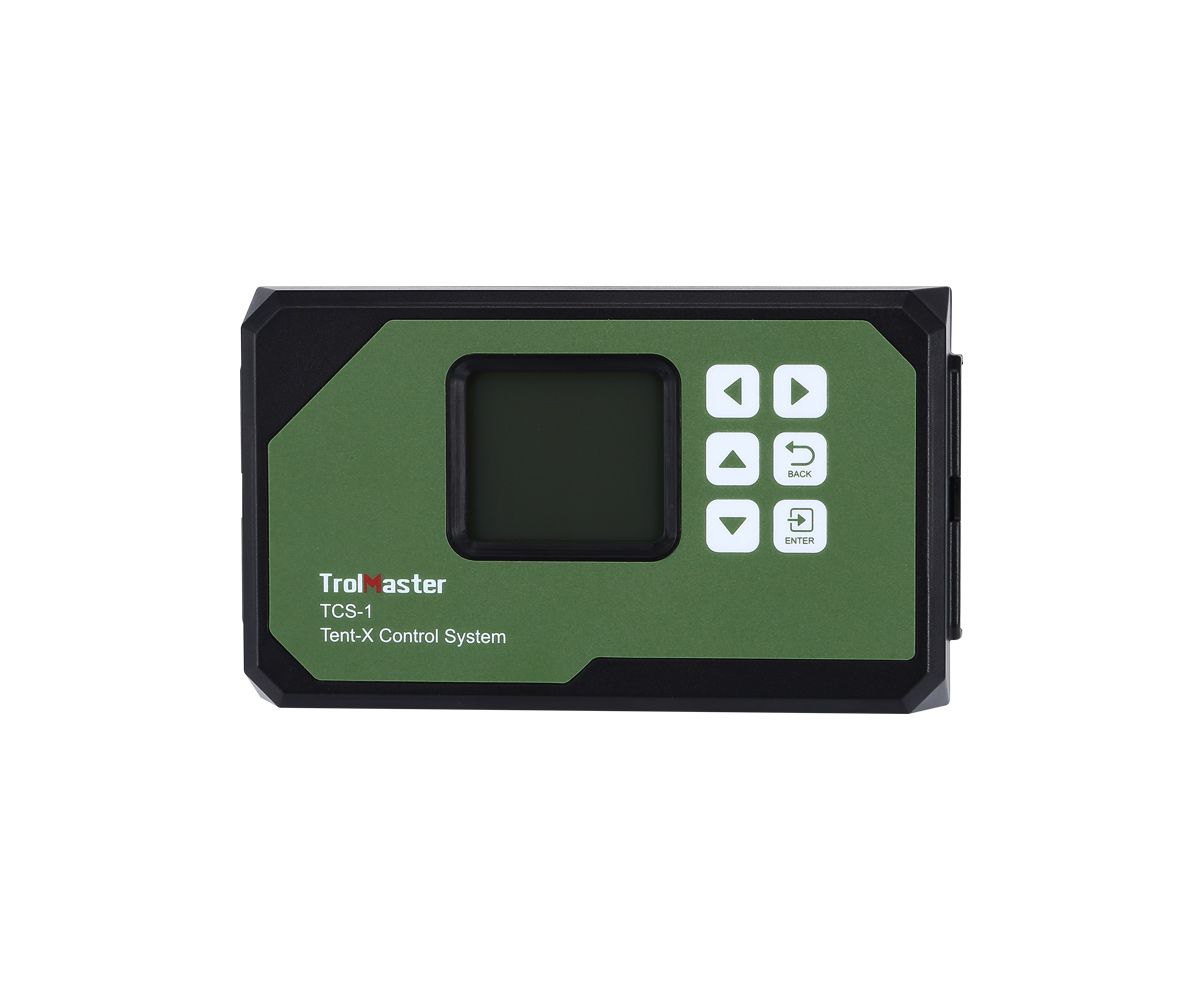

TrolMaster Tent-X Grow Tent Environmental Control System with 3-in-1 Sensor TCS-1

item 642181

🌱 TrolMaster (TCS-1) Tent-X Controller

TrolMaster's Tent-X (TCS-1) is a state-of-the-art professional-grade and modularly designed environmental and irrigation control system, designed for single-zone grow tents. Thanks to the controller's compact hydroponic capabilities, it allows the user to effectively control their tent's environmental parameters and irrigation schedule with a single control system.

It comes with a 3-in-1 temperature, humidity, and light sensor, the MBS-TH. Users can daisy-chain the MBS-TH sensor with the CO2 sensor (MBS-S8), the full spectrum quantum sensor (MBS-PAR), and the smoke and water detectors into the TCS-1's SENSOR port.

Users can also connect an AMP-3 sensor board to the Tent-X, and connect the Water content sensors (WCS-1/2) or the WD-1 water detector to the sensor board. Additionally, the TCS-1 supports the connection of up to four DS-type plug-in control models, allowing you to connect devices that can control the environment and irrigation.

The TCS-1 is the brain that unites all your climate control and irrigation devices into one being, allowing your devices to work together to create the optimal growth environment for your plants.

Features & Benefits:

• Grow Tent Grow Lights
• Climate
• Irrigation Compact Hydroponic Control System
• Modular Design & Fully Customizable
• Smartphone Control
• Complete Controlled Device Capacity
• Data Logging

Package Content:

• 1 x Tent-X Controller
• 1 x Temp / Humid / Light 3-in-1 Sensor
• 1 x RJ12 Cable Set for Light Connection
• 1 x RJ12 T-splitter

Specification:

• Input Voltage : 100-240VAC, 50/60Hz
• Certifications : ETL/FCC
• Max Number of Lighting Fixtures : 256*2
• Max Distance of Device Connected : 1000 meters
• 3-in-1 (Temp/Humid/Light) Sensor : Max 1pc per set
• CO2 Sensor :  Max 1pc per set
• Full Spectrum Quantum Sensor :Max 1pc per set
• Smoke Detector : Max 1pc per set
• AMP-3 Sensor Board (pH/EC/Temp) : Max 1pc per set
• Water Content Sensor : Max 1pc per set
• Water Detector : Max 2pc per set
• Temp Device Stations :  Max 2pcs per set
• Humid Device Stations :  Max 2pcs per set
• CO2 Device Stations : Max 2pcs per set
• Program Device Stations : Max 4pcs per set
• EC Fan Control Adapter : Max 2pcs per set
