TrolMaster Lighting Control Adapter for ThinkGrow LED Ballasts LMA-T

SKU 615241
106.74
SRP⠀ 125.24 − 18.50
✅ price beat guarantee
1
Save this product for later
Share this product with your friends

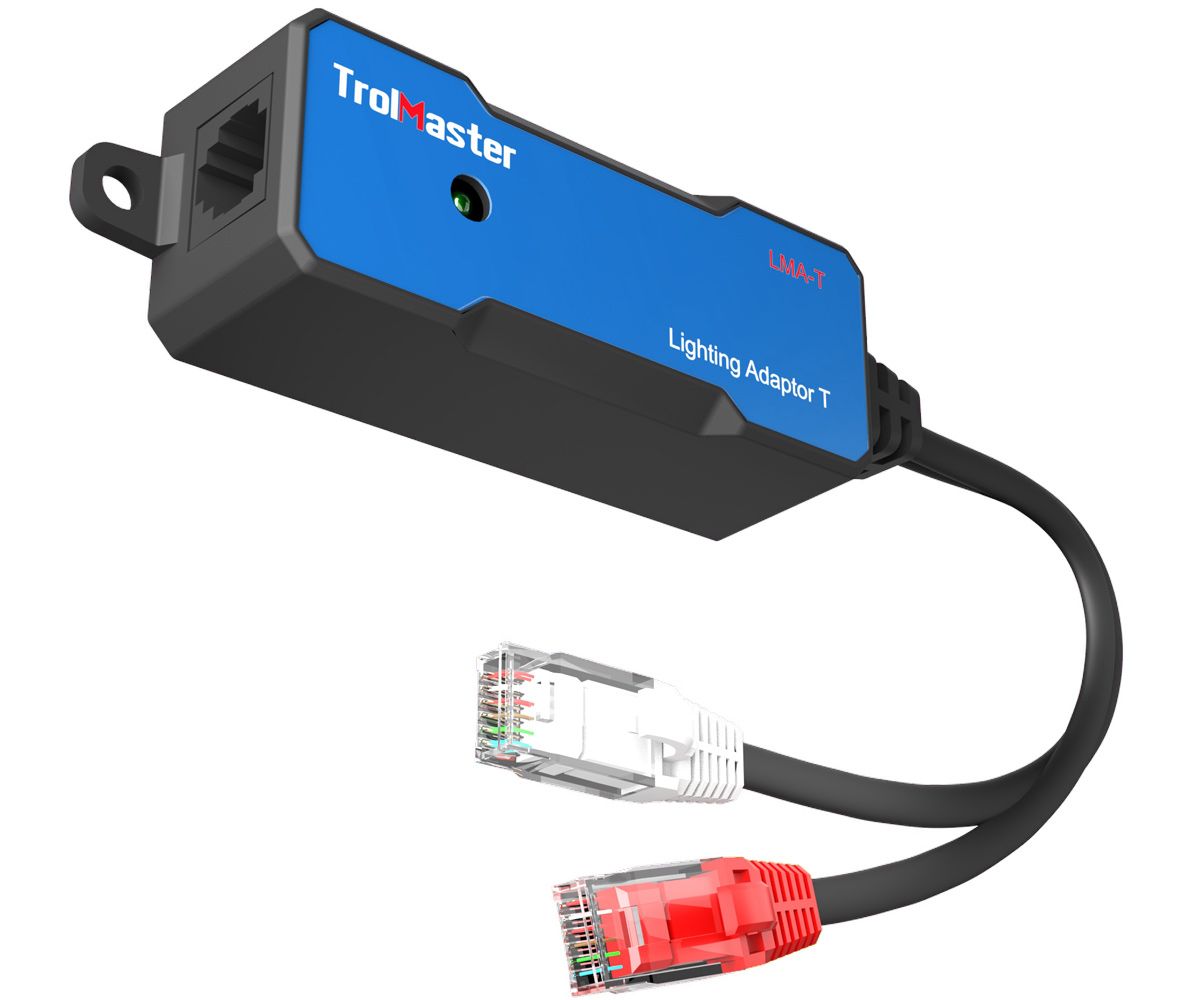

TrolMaster Lighting Control Adapter for ThinkGrow LED Ballasts LMA-T
Product Details
UPC: 6970207971257
Brand: TrolMaster

item
615241

🌱 TrolMaster (LMA-T) Lighting Adapter-T for Hydro-X System

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.

The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.

The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.

One adaptor could run up to 256 LEDs.

* Convert RJ12 to Water Proof Connector Cable included.

Features & Benefits:
  • LED Indicator
  • Plug & Play

Package Content:
  • 1x LMA-T
  • 1x RJ12 to customized waterproof connector
  • 1x ECS-9 cable

Specification:
  • Output Voltage : 0~11.5V
  • Maximum Current : 0.2A
  • Working Temperature : 32-122°F
  • Working Humidity : ≤90%
  • Packaging Dimensions : 156mm(L) x 83mm(W) x 30mm(H)
