TrolMaster Hydro-X Plus Environmental Control System with 4-in-1 Sensor HCS-3

item 642031

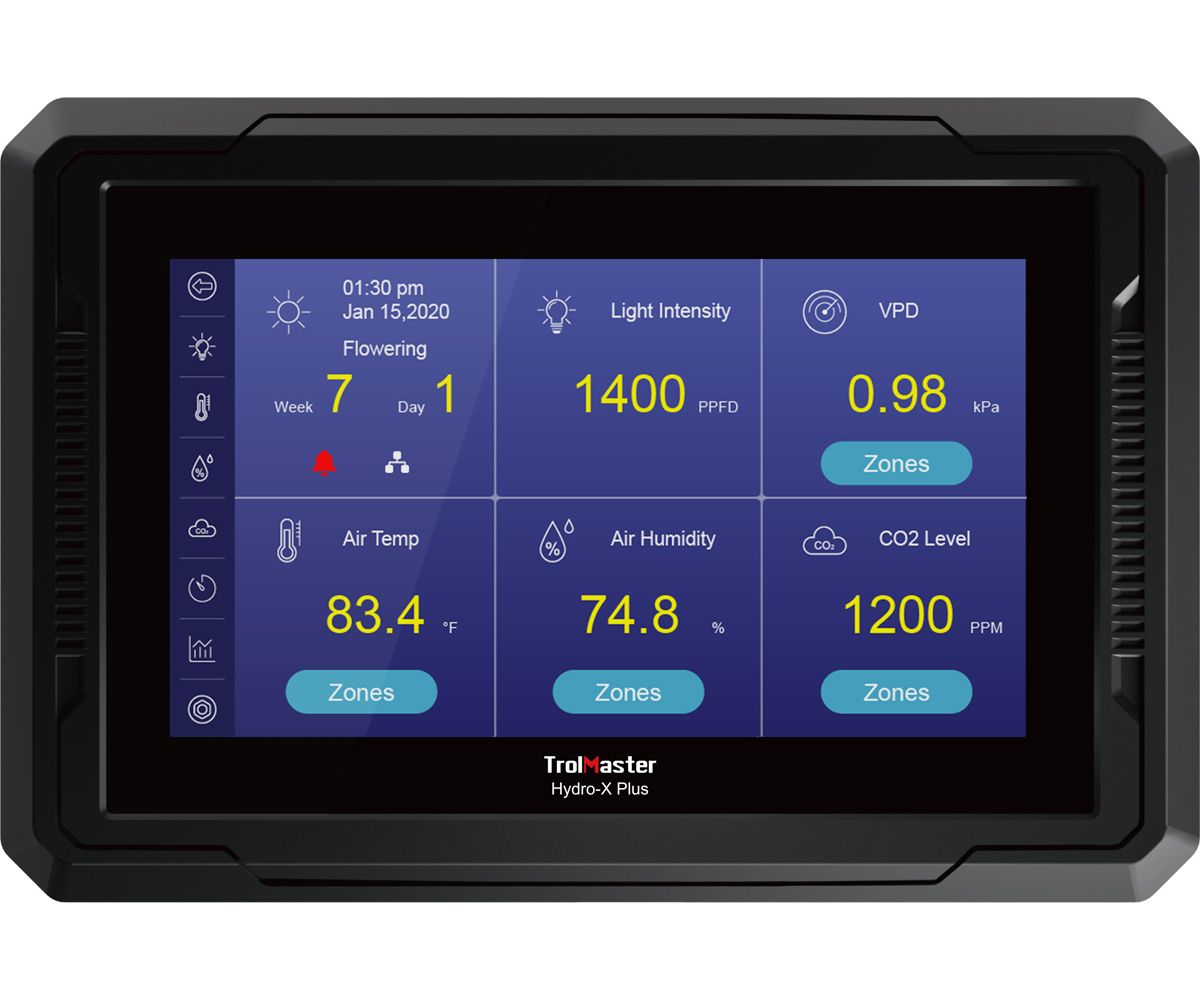

🌱 TrolMaster (HCS-3) Hydro-X Plus Controller

The Hydro-X Plus system (HCS-3) is a professional-grade single-zone environmental system for horticulture, fertigation, and hydroponics. It has a 800x480 7” LED display monitor, and can control up to 256 lights, 8 temperature devices, 8 humidity devices, 4 CO2 devices, 12 preprogram devices. With the incredible flexibility and expanded product capacity, anyone could easily customize their own grow room system for maximum yield.

The system comes with an MBS-PRO 4-in-1 sensor detecting temperature, humidity, presence of light, and CO2 ppm. An MBS-PAR can also be added to the system, it will automatically adjust light intensity to precisely maintain the lights utilizable for plant photosynthesis at the preset level. Up to 10 smoke detectors and 10 water detectors are also available for smoke and leaking detection to alert you if there is a fire and water leakage. Hydro-X Plus helps you to monitor your grow environments perfectly. When the measured value exceeds your custom setting range, a warning message will be sent to your smartphone.

Hydro-X Plus is specially designed to set up daily lighting management for your lighting system. Having 2 separate lines allows the users to create multiple lighting layouts (and dimming sequences) based on their individual preferences. This system can efficiently control your lighting system by running a schedule with advanced functions like auto-dimming, overheat shutdown, sunrise & sunset simulation.

Features & Benefits:

• 7" Touchscreen
• Advanced Lighting Control Function (DLI Control, Spectrum Control, Group Control, Cloud Control)
• Fully Customizable
• Compatible with MBS-PRO 4-in-1 Sensor
• Free Smart Phone App plus Web-based control system

Package Content:

• 1x Hydro-X Plus Controller
• 1x MBS-PRO
• 1x RJ12 T-Splitter
• 1x RJ12 Cable Set for Light Connection
• 1x 12V Power Adapter

Specification:

• Input Voltage : 100-240VAC, 50/60Hz
• All-in1 Pro Sensor (MBS-Pro) : max 1pc per set
• Full-spectrum Quantum Sensor (MBS-PAR) : max 1pc per set
• Water Content Sensor (WCS-1) : both max 10 pcs per set
• Temperature Device Stations : max 8pcs per set
• Humidity Device Stations: max 8pcs per set
• CO2 Device Stations: max 4pcs per set
• Program Device Stations: max 12pcs per set
• Package Dimensions(L*W*H): 275*170*95mm
