TrolMaster Controller Cabinet SCC-3 Standard for Hydro-X Plus 25 inch

TrolMaster Controller Cabinet SCC-3 Standard for Hydro-X Plus 25 inch

SKU 641781
996.50
SRP⠀ 1 143.76 − 147.26
✅ price beat guarantee
1
Save this product for later
Share this product with your friends
Pin it

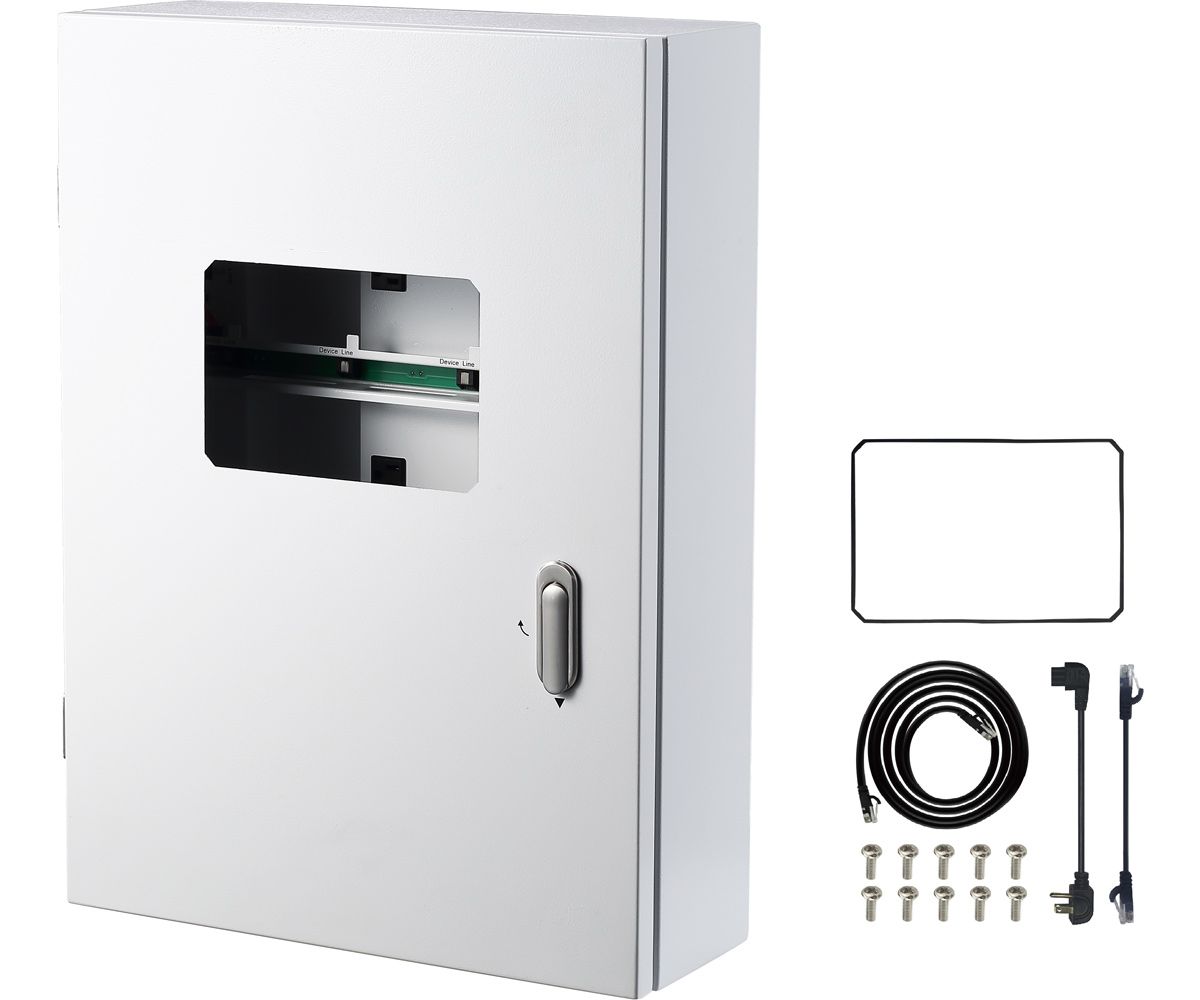

TrolMaster Controller Cabinet SCC-3 Standard for Hydro-X Plus 25 inch
Product Details
Brand: TrolMaster
Available stock: 12+

item
641781

🌱 TrolMaster(SCC-3) 25” Standard Controller Cabinet for Hydro-X Plus

The SCC-3 25" Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.

The enclosures are designed to allow for your TrolMaster controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies and modules, and organize your RJ12 cables with ease.

Features & Benefits:
  • Guaranteed Industrial Rated & Waterproof
  • ALL-IN-ONE Controller & Device Module Housing
  • Design Your Own Cabinet by Using Bi-directional RJ12 Cables
  • Detachable Design
  • Superior Safety System

Package Content:
  • Controller Cabinet x1
  • Installation Manual x1
  • Long RJ-12 Cables x4
  • Short RJ-12 Cables x16
  • Power Cables (for OA6-24/OA6-110) x4
  • OA6-24/OA6-110 Screw Set x 10

Cabinet Capacity:
  • Splitter Board #1: 10 ports (top)
  • Splitter Board #2: 6 ports (top)
  • Splitter Board #3: 17 ports (top)
  • Splitter Board #4: 2 x 4 ports (middle splitter bars)
  • Splitter Board #5: 6 ports (bottom)
  • Power Outlet: 4 + 1 + 6
Specification:
  • Dimensions:25" (L) x 18" (W) x 6.26" (H)
  • Enclosure Rating:IP56 (equivalent to NEMA 4X rating)
  • Temperature Resistance:32°-104°F
  • Input Voltage:120V
  • Maximum Amperage:15A
Show More
