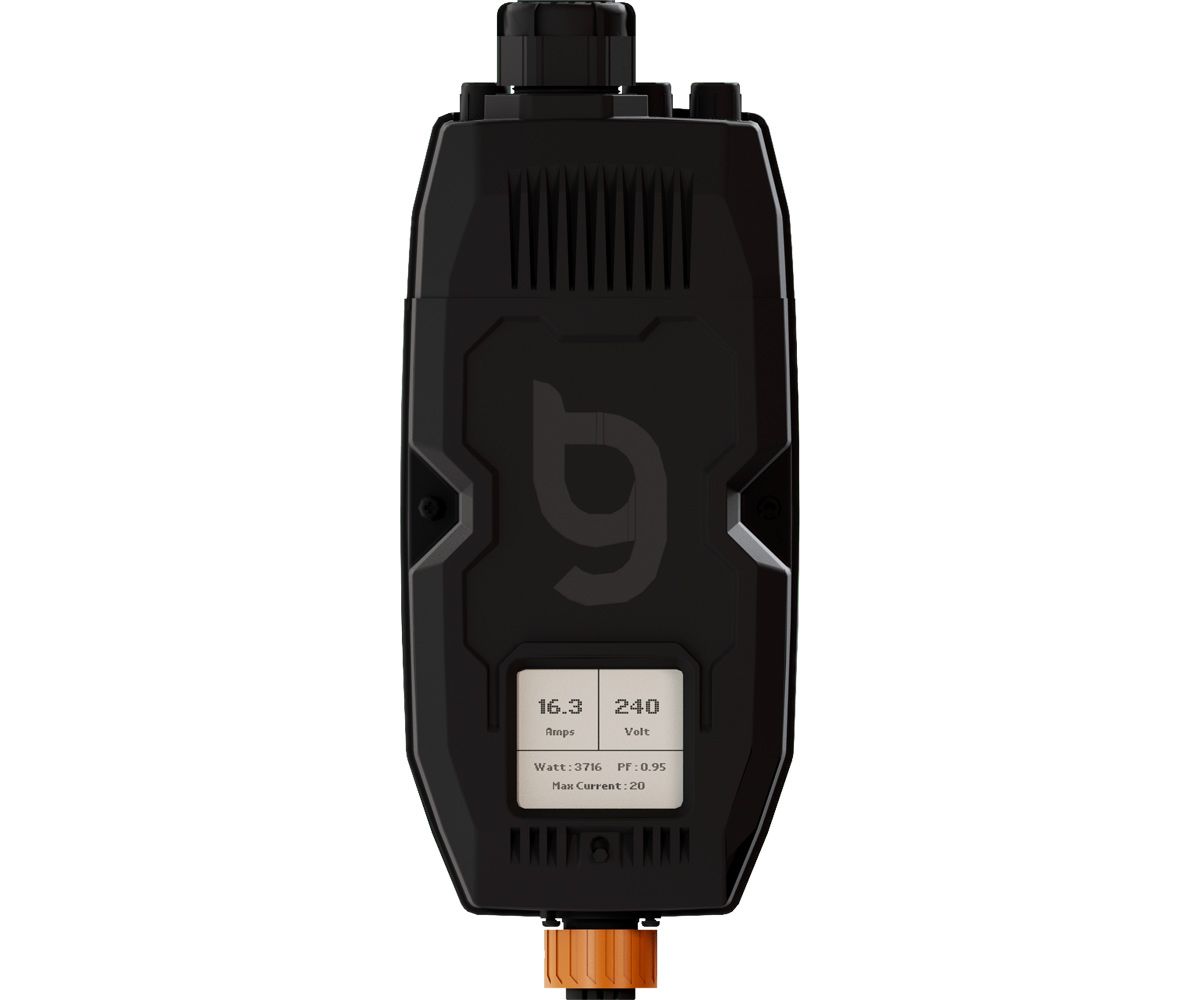

ThinkGrow Smart Junction Box OPA-2

item 641481

🌱 (OPA-2) Smart Junction Box

The ThinkGrow Smart Junction Box 2 (OPA-2) is an electronic circuit breaker and energy meter designed for real-time monitoring and control of electrical parameters such as voltage, current, power, and power factor. Equipped with overcurrent protection functionality, users can set three levels of overcurrent protection points. With built-in overcurrent protection and compatibility with TrolMaster controllers, the OPA-2 allows remote monitoring and adjustment of settings for optimal performance.

The OPA-2 allows users to set parameter values for Line 1 and Line 2 in Light Group Control Groups 0-9, as well as for UV, White, Deep Red, and Far Red in Spectrum Group Groups 0-9. This functionality enables precise control over the illumination levels of the lighting strips Featuring RS-485 communication, it supports precise control of lighting systems and offers unparalleled reliability and durability. If the circuit protector detects unusually high amperage, the power to the LEDs will be turned off to prevent damage to the LEDs and the Daisy Chain Power Cord System.

Features & Benefits

• Lighting fixture Grouping
• Complete power-off solution for night cycle
• Overcurrent Protection
• Power Surge Protection
• Power Consumption Data Collection
• On-Site Monitoring

Package Contents

• 1 x Smart Junction Box (OPA-2)
• 1 x ThinkGrow 12' Daisy Chain Control Cable (ECS-7)
• 2 x 12ft RJ12 to 4-Pin IP65 Connector Cable (ECS-9)
• 2 x Y- Splitter

Specifications

• Input Voltage: 100-277V~, 50/60Hz
• Rated Current: 30A
• Rated Voltage: 100-277V~
• Shut-off Point Range: 15A / 20A / 30A
• Sensitivity to Protection: Response within 0.5s
• Overcurrent Protection Point: +120%
• Temperature: 32-104°F (0-40°C)
• Humidity: ≤90%
