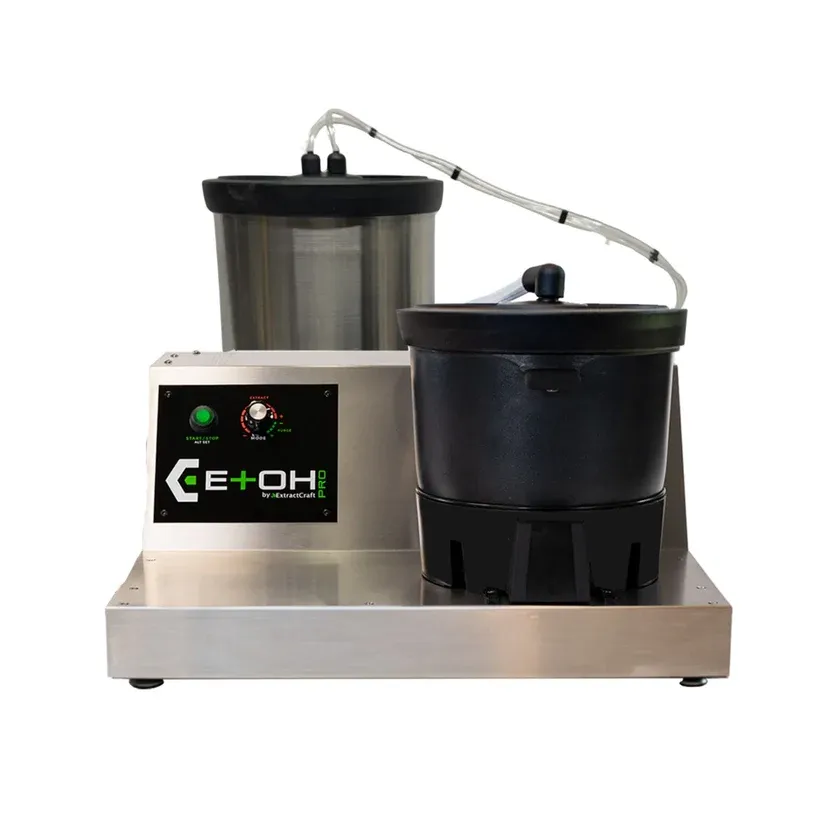

Extract Craft Pro Commercial Botanical Extraction EtOH

• High-Volume Extraction Capacity
• Process up to two pounds of dry botanical material per run with a 4-liter liquid processing capacity, ideal for larger extraction batches and commercial concentrate production.

Improved Firmware

• Updated firmware provides enhanced operational efficiency, including:
• More efficient power consumption
• Decreased processing duration
• Faster overall extraction and recovery process

Standard Technical Specifications

• Processing Liquid Capacity 4 Liters
• Dry Material Capacity Up to 2 Pounds Per Run
• Processing Time Less Than 3 Hours
• Operating Temperature 96°F–110°F
• Ethanol Recovery Temperature Approximately 100°F
• Solvent Recovery System Closed-Loop
• Ethanol Recovery Rate Up to 98%
• Process Observation Glass Cover Lid
• Extraction Kettle Ceramic-Coated for Easy Extract Removal
• Collector Gallon Collector
• Post-Processing Controls for Optional Purging Capabilities
• Operation Odorless Process

Extract Craft Warranty

Your Extract Craft EtOH Pro Extraction Machine includes a 90-day Limited Warranty beginning on the date of delivery.

The EtOH Pro Commercial Extractor is the best botanical extraction equipment in its category. It applies the latest technology to make it user-friendly and ensure you optimize your botanical product extraction. It allows you to extract oils and concentrates from botanicals, generally referred to as absolute oils, which contain the plant's essential oils and other beneficial components or full-spectrum oils. These concentrates can be used as-is or crafted further into your desired end product, such as tinctures, food and beverages, cosmetics, and much more.

EtOH Pro Commercial Extractor Step-by-Step Guide:

1. EtOH PRO Base Unit
2. Power cord
3. Process Kettle
4. Kettle Vacuum Lid
5. Reclaim Vessel (64 ounce or 1 Gallon)
6. Spit jar

Setting Up the EtOH Pro:

• Fix the power cord at the back of the machine and plug it into an electrical socket
• Locate the power switch; turn it on to confirm the illumination delivers power to the green start/stop button.
• Fix the spit jar to the unconnected tube coming from the back, bottom corner of the unit. Use one of the ports on the lid and leave the second port open and unattached.
• Ensure the base is flat using the adjustable feet and plenty of clearance between the workplace surfaces.
• (Optional) Fix the reclaim holster to the left side with the keyhole cutouts.
• (Optional) Fix the kettle lid holster to the back of the base and ensure it rests on the four pre-set protruding round head screws.
• Place the empty reclaim jar in the holster (or just to the side of the unit) and cover it with its lid with the hose inside the jar. (Note: You don't need to screw down the lid. It will vacuum on once you start up the unit and will not need to screw down the lid)
• Set altitude tuning

1. Load kettle with tincture and ensure its plugged into the base to avoid sloshing and spillage
2. Set the extract mode – Use the dial to set EXTRACT (setting in the red zone)
3. Establish vacuum seals – Starting the EtOH PRO makes the vacuum pump produce vacuum pressure observed in the reclaim jar. Hold the reclaim jar lid in position for approximately 10 seconds, then move your hand away. If it stays on its own, the jar is sealed. It will only have a light seal until the kettle lid is sealed. (Note: You do not need to screw down the lid on the reclaim jar. It is advised that you do not screw the lid down but just let the vacuum seal hold it on.

1. Run the extract mode - Having established a vacuum successfully, the pumps will continue running for around 5 to 7 minutes before turning off. These pumps will come on and off throughout the process. Once the pumps turn off, tiny bubbles should appear. These bubbles will grow until you see a full boil happening in the kettle. Check the EtOH Pro User Manual to take the necessary precautions while running the extract mode.
2. Switching or emptying the Reclaim Jar Mid process – This is only necessary if you are extracting more than 1750ml of botanical product. Switch off the machine and release the vacuum. Empty the reclaim jar, then repeat step 3.
3. Stopping the process – You decide when to stop the process based on the desired end product and whether or not you would still like some ethanol left in the concentrate. Press the illuminated green button to stop the process and ease the vacuum. Read the user manual carefully to learn the tips and precautions to take while controlling the equipment. (Note: It is generally recommended to stop the process when the oil inside is at a cooking oil viscosity or earlier. You can give a slight tilt to the bottom of the machine to see how the oil inside flows. This oil can be ready to use as is, or if purging out the small amount of remaining ethanol is desired, you can pour the oil onto a non-stick silicone mat or into a Pyrex dish and let the remaining solvent evaporate off. You could also perform a vacuum purge, which we will go into details with in a later blog post.)

Extract Craft EtOH Pro Elite Kit

• Liquid Capacity Processes up to 4 liters (ideal for ~2 lbs of dry botanical material)
• Processing Temp Low-temperature vacuum separation at approximately 100°F
• Solvent Requirement 190+ Proof non-denatured Ethanol / Food-Grade Alcohol
• Extraction System EtOH Pro Rev2 with vacuum distillation and ethanol recovery
• Warranty & Returns 90-Day Limited Factory Warranty
