AC Infinity Cabinet Ventilation Grille

item 647451 647441 647431 647421 647411 647401 647391 647381 647491 647481 647471 647461

🌱

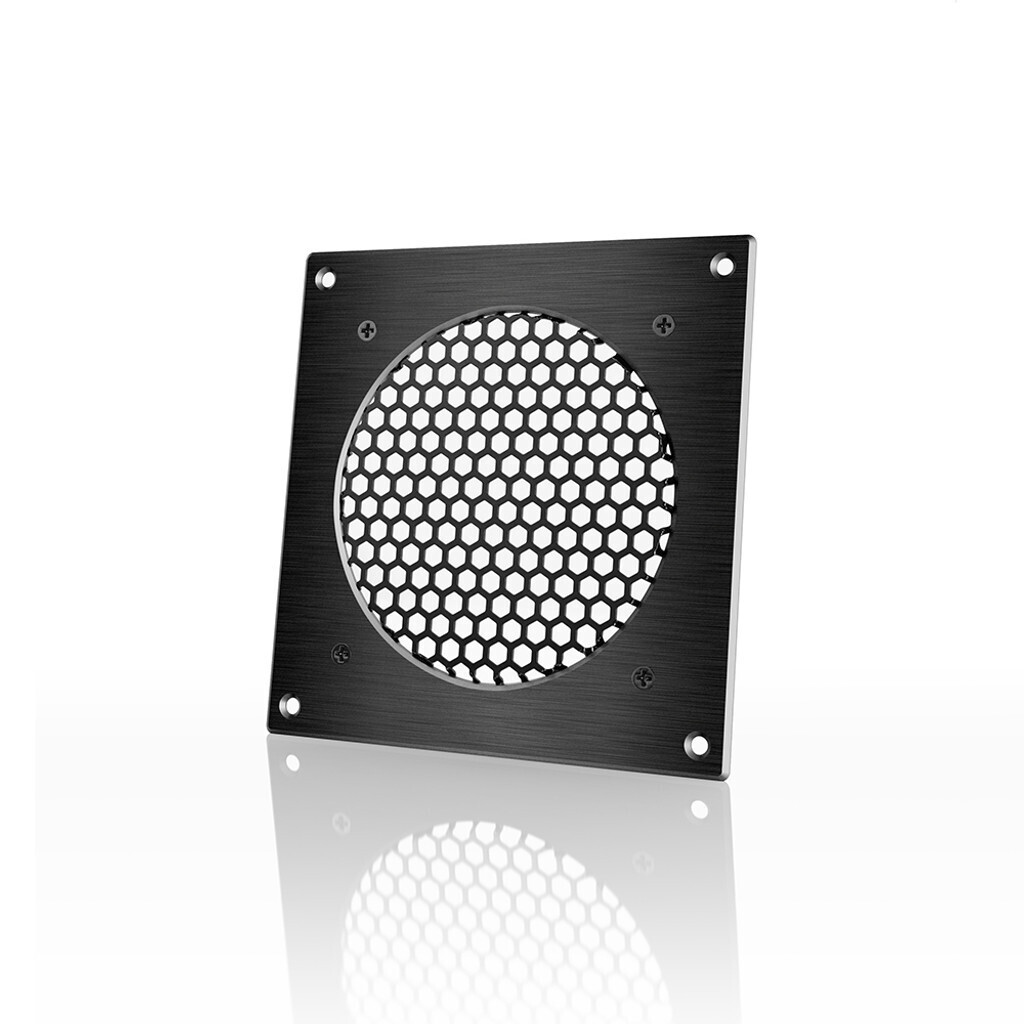

The Cabinet Ventilation grille is a 6.3 by 6.3 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes an optional 120mm fan guard and hardware to secure a 120mm fan, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 5.04 by 5.04 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 11.7 by 6.1 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes optional 120mm fan guards and hardware to secure two 120mm fans, the most popular size for computers and DIY applications, onto the grille. To mount your fans and grille into your cabinet or wall, you would need to cut a square hole approximately 10.12 by 5.35 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 4.6 by 4.6 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes an optional 80mm fan guard and hardware to secure a 80mm fan, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 3.42 by 3.42 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.
The Cabinet Ventilation Grille is a 5.9 by 2.0 inch metal grille that can be installed into cabinets and walls to help increase ventilation. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. To mount the grille into your cabinet or wall, you would need to cut a square hole approximately 3.42 by 2.28 inches. Features a CNC machined anodized aluminum frame with a brushed black finish and matching flat-head screws. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 8.5 by 4.4 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes optional 80mm fan guards and hardware to secure two 80mm fans, the most popular size for computers and DIY applications, onto the grille. To mount your fans and grille into your cabinet or wall, you would need to cut a square hole approximately 7.00 by 3.82 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below
The Cabinet Ventilation grille is a 17.5 by 6.1 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes optional 120mm fan guards and hardware to secure three 120mm fans, the most popular size for computers and DIY applications, onto the grille. To mount your fans and grille into your cabinet or wall, you would need to cut a square hole approximately 10.12 by 5.35 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 4.6 by 4.6 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S1 and can be used to replace their black mounting frames by using a a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes an optional 80mm fan guard and hardware to secure a 80mm fan, a popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 3.42 by 3.42 inches. Features a CNC machined aluminum frame, pre-secured to a steel honeycomb grille, and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
The Cabinet Ventilation Grille is a 5.9 by 2.0 inch metal grill that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S2 and can be used to replace their black mounting frames by using a a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. To mount the grille into your cabinet or wall, you would need to cut a square hole approximately 3.42 by 2.28 inches. Features a CNC machined aluminum frame and flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 6.3 by 6.3 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S3 and T3 and can be used to replace their black mounting frames by using a a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes an optional 120mm fan guard and hardware to secure a 120mm fan, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 5.04 by 5.04 inches. Features a CNC machined aluminum frame, pre-secured to a steel honeycomb grille, and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 8.5 by 4.4 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S5 and can be used to replace their black mounting frames by using a a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes two optional 80mm fan guards and hardware to secure two 80mm fans, a popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 7.00 by 3.82 inches. Features a CNC machined aluminum frame, pre-secured to a steel honeycomb grille, and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 11.7 by 6.1 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S7 and T7 and can be used to replace their black mounting frames by using a a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes two optional 120mm fan guards and hardware to secure two 120mm fans, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 10.12 by 5.35 inches. Features a CNC machined aluminum frame, pre-secured to a steel honeycomb grille, and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
The Cabinet Ventilation grille is a 17.5 by 6.1 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S9 and T9 and can be used to replace their black mounting frames by using a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes three optional 120mm fan guards and hardware to secure three 120mm fans, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 15.75 by 5.35 inches. Features a CNC machined aluminum frame, pre-secured to a steel honeycomb grille, and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.
